PUS-Q2-1
Application：
Painting：Internal &External wall insulation

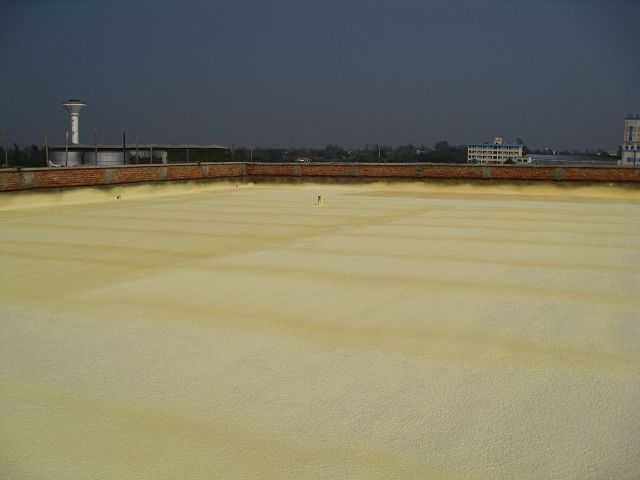

Roof water proof and heat insulation
Cold storage, cabin, containers
Trucks ,refrigerated trucks
Casting：Solar water heater, tank insulation
Cabin ,insulation board, security doors
Refrigerators, pipes, road construction
Packing, road construction, wall filled

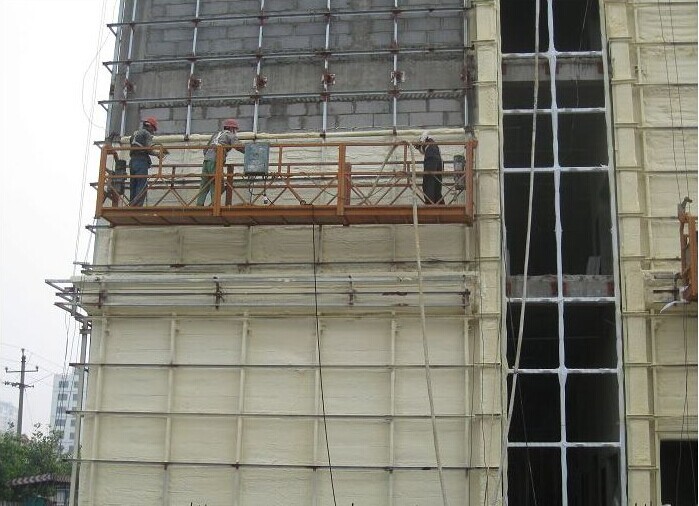

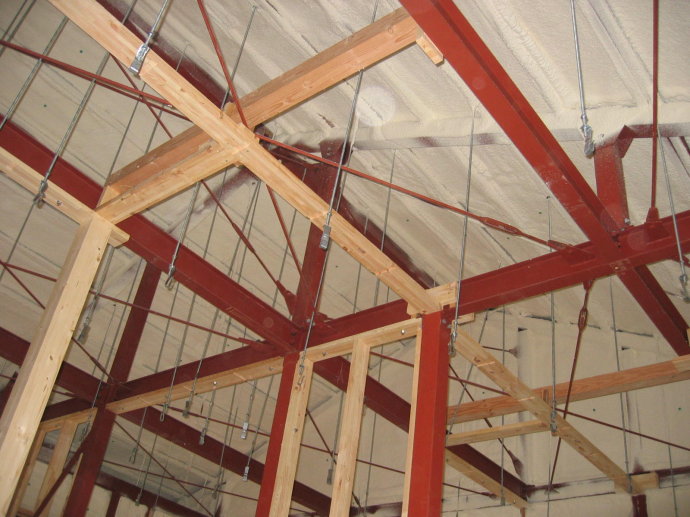

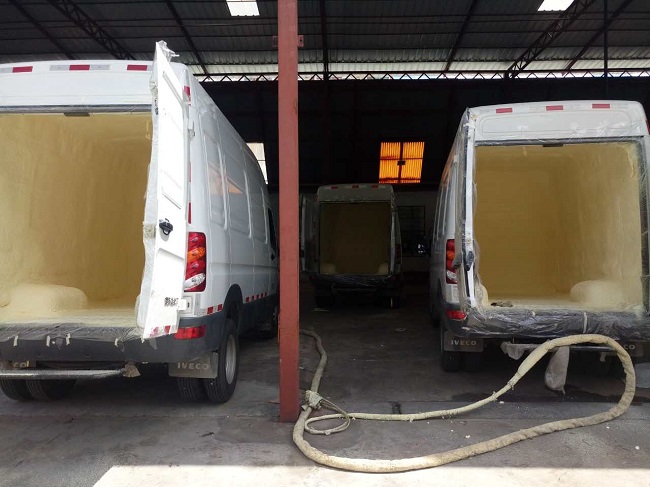

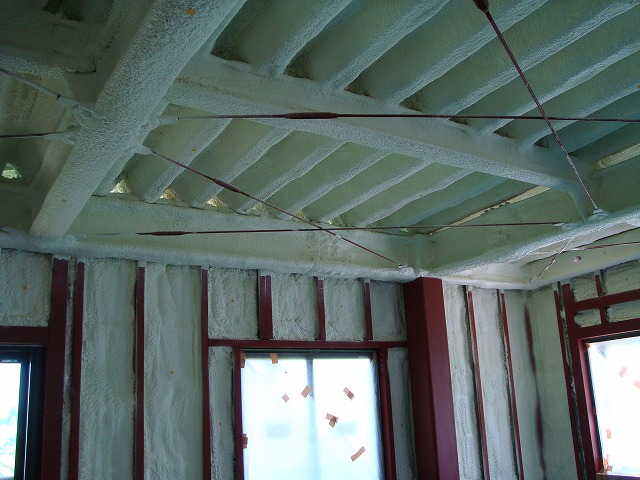

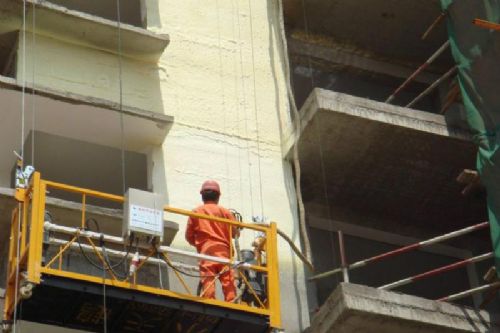

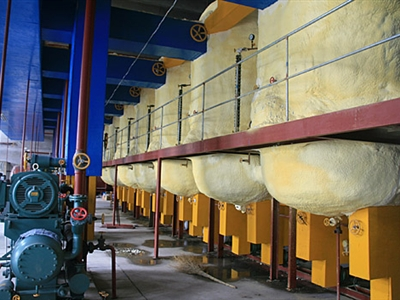

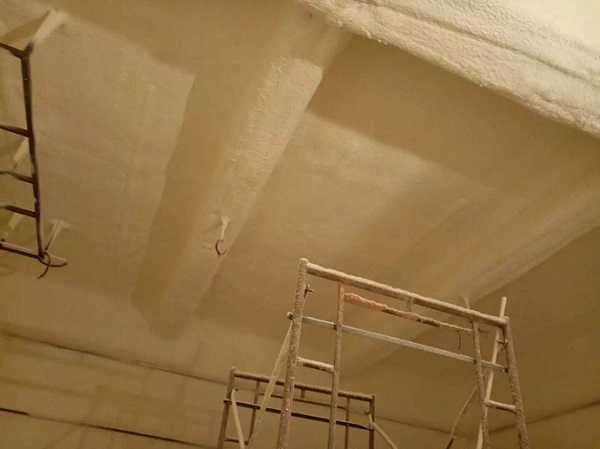

Project Photo
Introduction：
Spray polyurethane foam (SPF) is made by mixing and reacting chemicals to create a foam. The mixing and reacting materials react very quickly, expanding on contact to create foam that insulates, air seals and provides a moisture barrier. SPF insulation is known to resist heat transfer extremely well, and it offers a highly effective solution in reducing unwanted air infiltration through cracks, seams, and joints.
Spray Polyurethane foam:
Prevents Air,mositure,vapor and sound infiltration
Reduces energy usage and heating and cooling costs
Increases building and occupant comfort
Meets new building codes and green building certificate

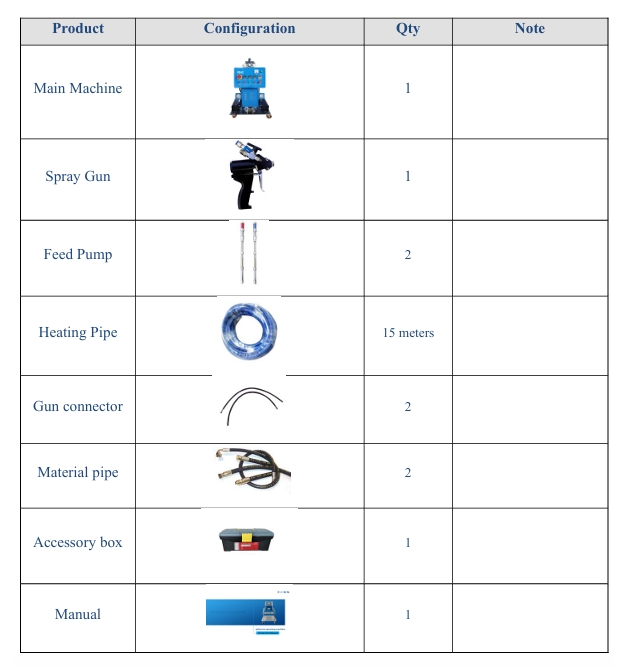

Standard Configurations:
Model: PUS-Q2 PU Spray Equipment
Power：3-phase 380V /1 phase 220V
Heating power：11KW
Driven：Pneumatic
Air source：0.5~0.8 MPa
Air capacity：≥0.9m3/Min
Flow Capacity：3~10 kg/Min
Max output pressure：25Mpa
AB material output ratio：1:1
Max output distance：92 meter
Package: Wooden
Dimension： 910mm X 890mm X 1300mm
Gross Weight：116KG
TWO YEAR WARRANTY
1. Pneumatic driven, with small volume, light weight, low failure rate, simple operation, easy operation
2. Advanced reversing direction method, make sure working stability.
3. Minimizing spraying block with multi-filter device
4. Multi-leakage protection system to protect the safety of the operator.
5. Equipped with emergency switch system, help operator deal with emergence rapidly
6. 380V heating system enables rapid warming of raw materials to the best working situation, speeds up normal operation progress.；
7. Digital counting system can understand original consumption timely.
