PUR-Q4
Application：
Apply to various construction environment with spraying/casting two-components
Materials like polyurethane elastomer,polyurethane foaming materials.etc.
Widely used in
Embankment waterproof,pipeline corrosion
Auxiliary cofferdam,Tanks,pipe coating
Cement layer protection,wastewater disposal
Roofing,Industrial maintenance,cold storage insulation.

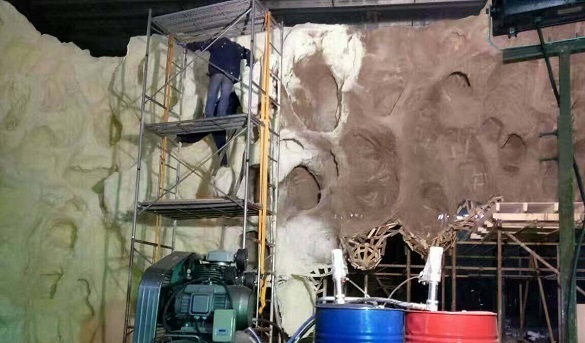

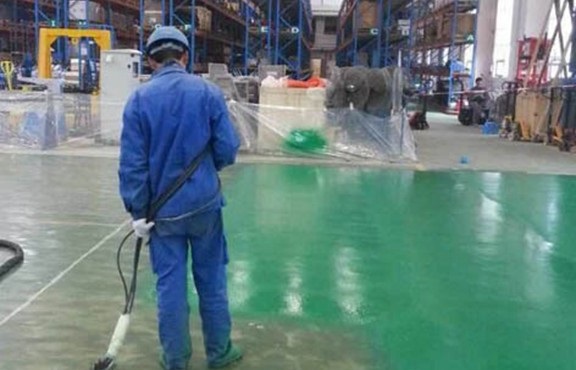

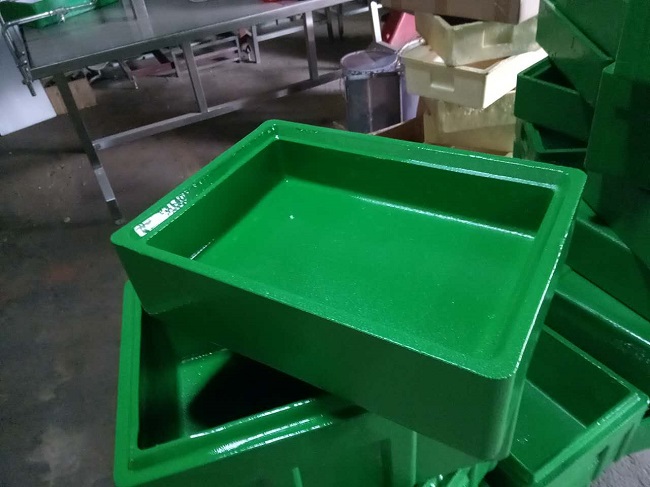

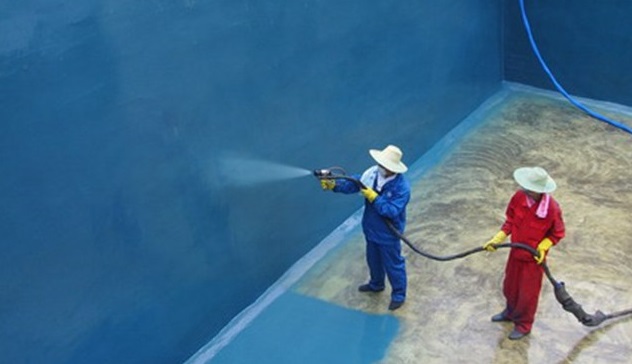

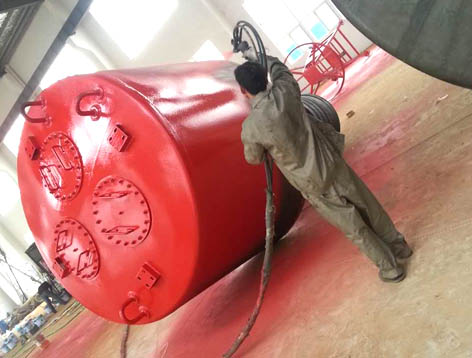

Project Photo
Introduction:
Polyurea spray has been used for the last twenty years in the world market, due to its escellentl chemical, physical and mechanical performance as a waterproofing and protective coating of any kind of material, even with complex geometries, after proper support preparation and application of specific primer. Polyurea Pava CF is applied by spraying to a thickness of not less than 2 mm, with special airless pumps, bi-mixer type at high pressure (about 210 bar) and vaporized in warm temperature (about 50 ° -70 ° C).
With excellent adhesion, polyurea may be used for protection of conventional commercial/industrial surfaces such as, but not limited to concrete, modified bitumen, BUR, and metal

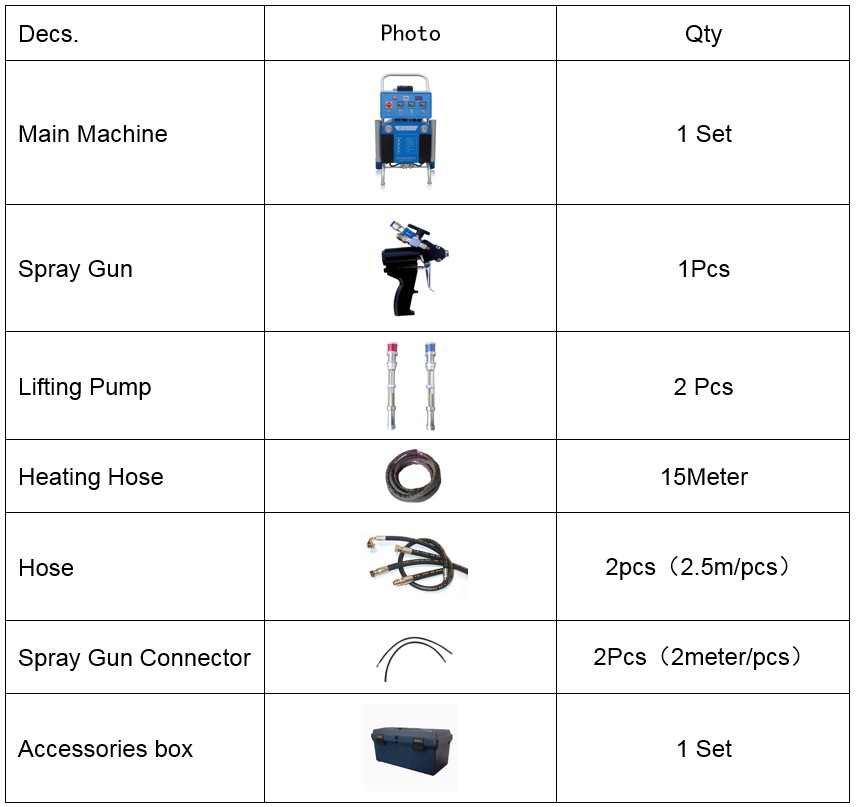

Standard Configurations：
PUR-Q4 Polyurea Spray Equipment
Power：3-phase 380V/1 phase 220V
Heating power：18KW
Driven：Pneumatic
Air source：0.5~0.8 MPa
Air capacity：≥1.2m3/Min
Flow Capacity：3~10 kg/Min
Max output pressure：30Mpa
Max Head lift: 120 Meter
AB material output ratio：1:1
Package: Wooden
Dimension： 1010mm X 910mm X 1330mm
Gross Weight：114KG
TWO YEAR WARRANTY
- Equip with 160 big cylinder,good for supply sufficient output pressure
- Advanced reversing direction method, make sure working stability.；
- Minimizing spraying block with 4 layer filter device；
- Multi-leakage protection system to protect the safety of the operator.；
- Equipped with emergency switch system, help operator deal with emergence rapidly
- 380V heating system enables rapid warming of raw materials to the best working situation, speeds up normal operation progress；
- Digital counting system can understand original consumption timely.
