We provides plural two components airless spraying equipment for the corrosion protection of metal,oil and gas pipelines. Applying high-solids plural-component coatings efficiently and on-ratio can be a challenge. Our equipment meets the ratio challenge with a whole new set of technologies and features.

  • Internal mix type
    Build-in mix system in the spray gun, to make even mixture
    Fixed internal mix ratio
  • External mix type
    Can spray two component fast cure type liquid material
    Mix ration between Group A and Group B can make mechanical adjustmentCustomers Applicaiton Case:
    1.Oil & Gas Industry
  • GP3834 with Mix ratio 4 parts : 1 parts by volume used for spraying Interline 850(Epoxy Phenolic)
  • GP3845 with Mix ratio 2 parts : 1 parts by volume used for spraying interline 984(Heavy Duty Epoxy Phenolic)

    2.Windows and Insulating Glass Industry
  • GP3834 with Mix Ration 4:1 used for spraying sealant,its viscosity are up to 10,000mpas

    Note:
    We recommend External Spray Gun if solidification time are very short after mixing Group A and Group materials.

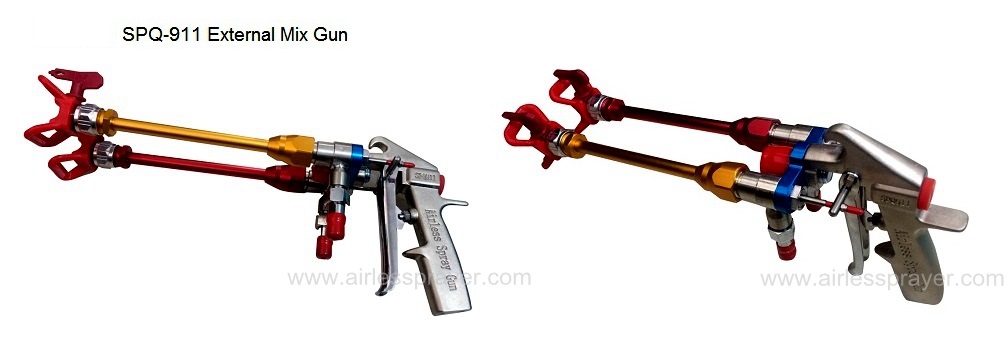

    SPQ-911 External Mix Gun

Plural Components Sprayer Equipment
GP3845  2:1 Mix Ratio
GP4634  3:1
GP3834  4:1

Output pressure(MPa):20-27.6  (200~276Kg/cm²)
Inlet pressure(MPa): 0.3-0.6
Stroke(mm): 100
Weight(kg): 90
Mixing ratio: 1:2 ,1:3, 1:4

  • Suitable for every kinds of low or high viscosity liquid material.
  • Have a small splash of paint, paint saving and Eco-friendly
  • External mixing reduces equipment failure rate resulting from material solidify
  • Provides accurately mixed and proportioned material to reduce waste
  • GP3845(1:2) GP4634(1:3) GP3834(1:4)
  • Can spray two component fast cure type liquid material
  • Mix ration between Group A and Group B can make mechanical adjustment
