GP-A6528K Industrial Airless Sprayers produces high pressure ratio and high displacement which are suitable in spraying the epoxy zinc rich coatings, heavy corrosion preventing painting construction, 830.831 bunker oil paint, epoxy thick slurry paints,thick film coatings..
When applying epoxy coating,besides considering high pressure ratio,but also need the high displacement,otherwise low displacement are easy to cause some painting sediment.
According to the coating type and the construction work need, the heavy-duty hose may lengthen by joining to about 50 meters to 150 meters.
Model application: Ships,Steel structure,Automobile,Trailer,Train,Machinery,Grounds around a house,Railroad vehicles,Tunnel,Pipeline,Storage tank,Bridge,Dam,Container,Astronautics aviation.

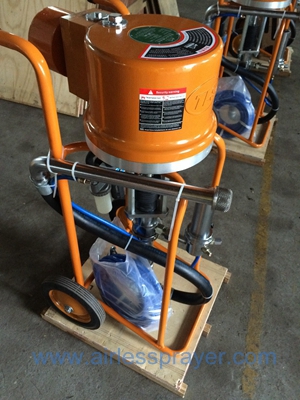

Model: GPA6528K Industrial Airless Sprayers
Pressure conversion ratio: 65: 1
No-load displacement(L/min): 28
Inlet pressure(MPa): 0.3-0.6
Air consumption(L/min): 300-2500
Cylinder diameter(mm): Ф264
Dimensions(mm)width×height×high: 570×452×1012
Weight(kg): 55
GPA6528K Spare Parts List
1. Airless sprayer equipment 1 set
2. Airless sprayer gun SPQ-2 1 set
3. Rotating nozzle 1 set
4. High-pressure hose（￠6mm X 2m） 1 set
5. High-pressure hose（￠8mm X 10m）1 set
6. Transition joint (M14X1) 1 set
7. Product instruction manual 1 copy

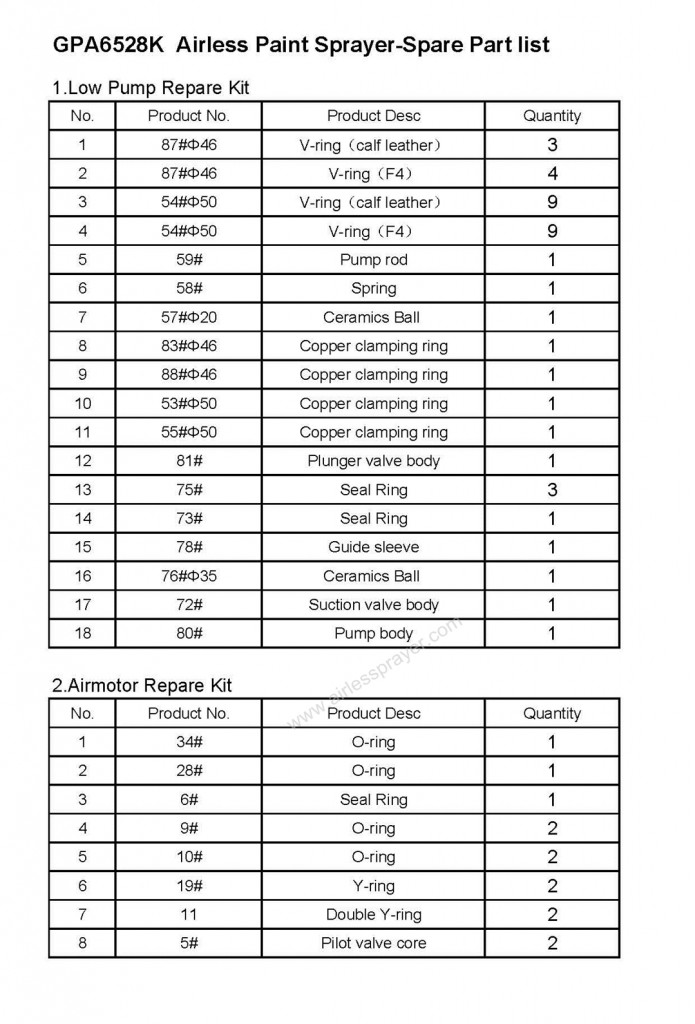

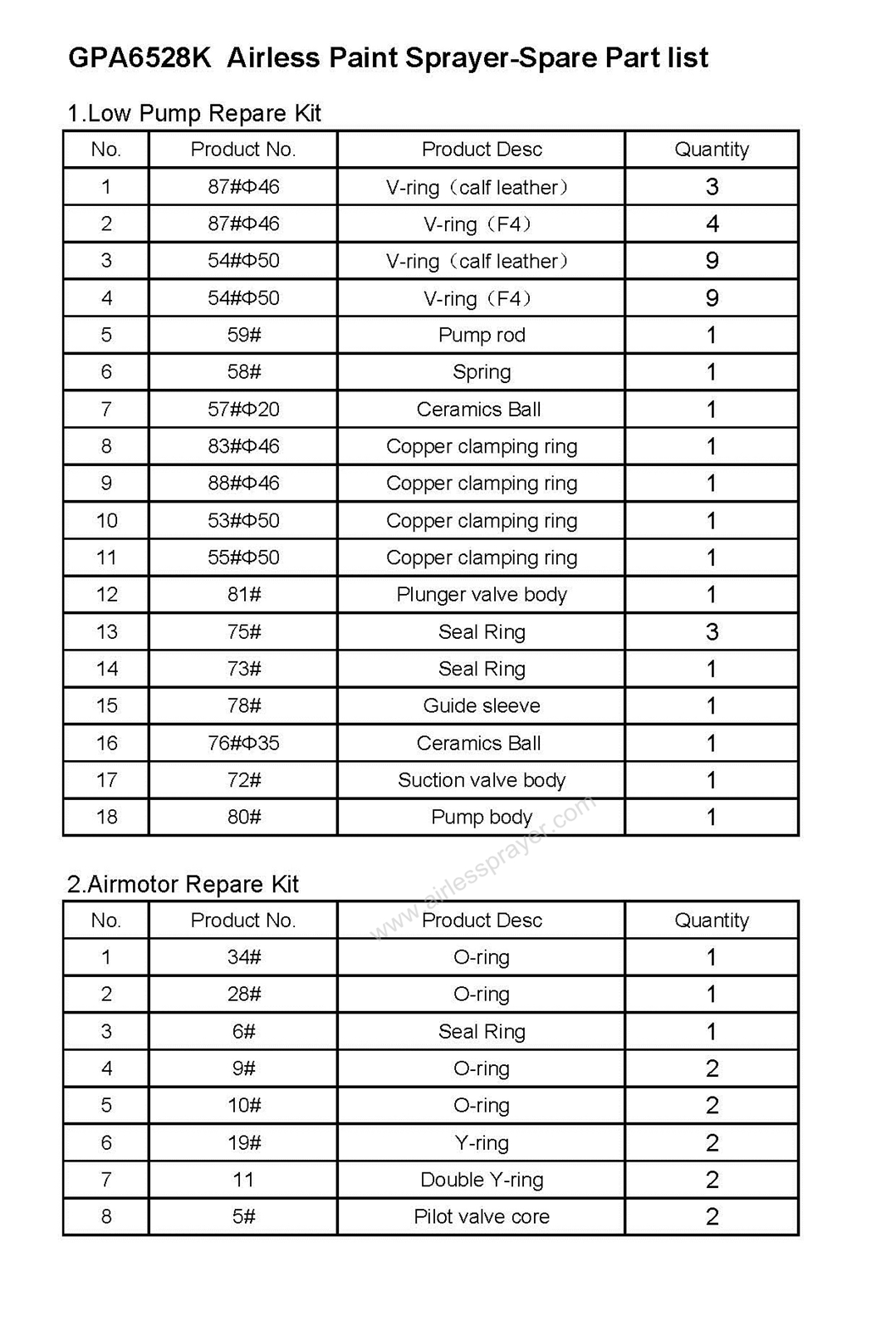

Optional Repare Kits For 1.5 Years Used
GPA6528K Industrial Airless Sprayers
- Pressured air as the power,steady and reliable,malfunction ratio is extremely low.
- Pressure pulsation is small;the coating layer is even,the coating quality is better.
- The route is long,the exhaust is big,the frequency of switching direction is low,hard to be damaged by friction,the life of the machine and the maintenance cycle extends.
- Use new type silencing device.
