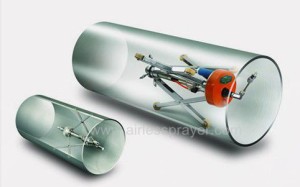

NKP-3-type Interior Pipe Coating Equipment with our airless spray machine together could be used in spraying a variety of channels of which inside diameter is Ф300 – Ф1200mm(12”-47”)

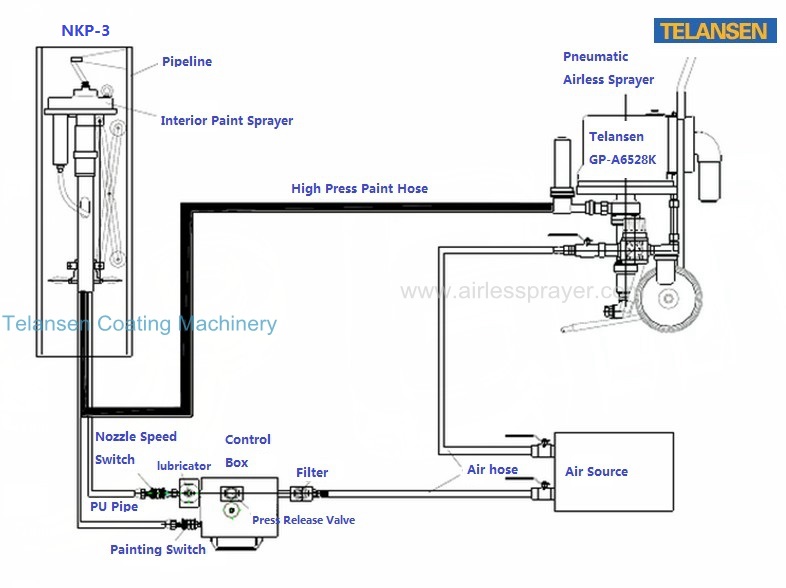

high-pressure paints which transfers from the airless spray coating machine and then goes through pipe inner wall spray device, rotates and moves forward ,and at last finish the pipe coating successfully.
NKP-3-type spray paint is fan-shaped, so adaptable to the majority of the high viscosity of paint spraying.
NKP-3 type are adapt to a variety of channels with diameter Ф300 – Ф1200mm.
For Better Spraying performance,we recommend to use NKP-3 along with GPA6528K(65:1,28L/Min) Airless spray pump.

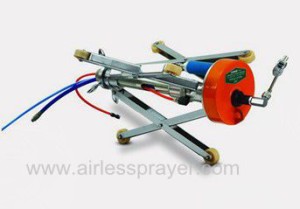

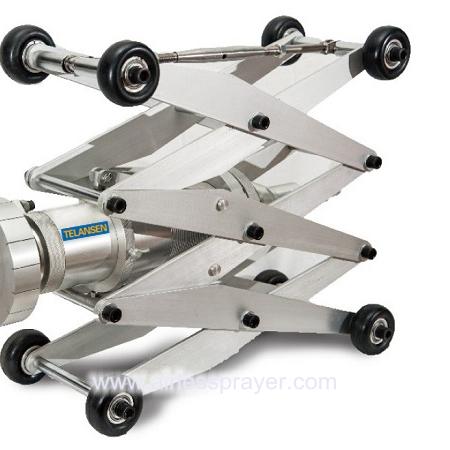

Model: NKP-3 Interior Pipe Coating Equipment
In spray coating pipeline hole scope (mm): Ф300-1200(12-47”)
Manifold pressure (MPa): 0.4-0.6
Spray nozzle velocity of whirl (r / min): 10-100
Nozzle Size: 515(Orifice:0.38mm;Output:0.8L/Min),521(Orifice:0.53mm;Output:1.59L/Min)
Fuselage length (mm): 950
Fuselage weight (kg): 18
