COATING THICKNESS METER are used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station, and machine manufacturing.
Coating thickness or dry film thickness (DFT) is an important variable that plays a role in product quality, process control, and cost control. Measurement of film thickness can be accomplished by selecting the best mil gage for the particular application.

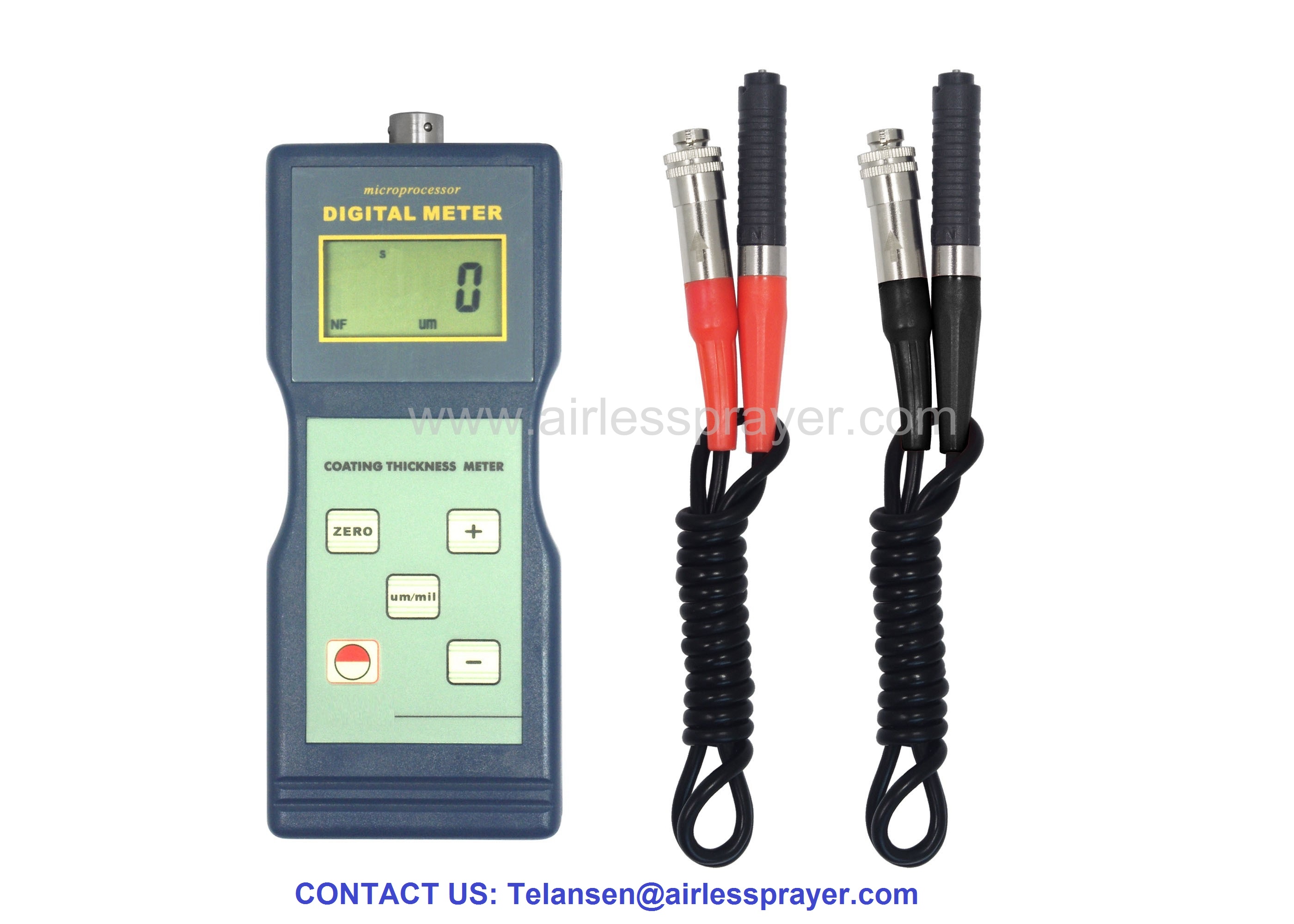

COATING THICKNESS GAGES (also known as mil gages or paint meters)
Specification:
| Range: | 0 to 1000 μm, 0 to 40 mil |
| Resolution: | 0.1 μm |
| Accuracy: | ±1 + 3% or 2 μm, whichever is of greater value |
| Sampling Time: | 1 Second |
| Power Supply | 4 X1.5V ‘’AA’’ batteries |
| Dimensions | 6.3 X 2.7 X1.25’’(161 X 69 X32mm) |
| Weight | 9 oz(260g) |
Feature:
1. Measure the thickness of non-magnetic coatings on non-magnetic or magnetic substrates
2. Choice of remote probe; F probe measures the thickness of non-magnetic coatings on magnetic substrates; N probe measures the thickness of non-magnetic coatings on non-magnetic substrates
3. Automatic probe recognition
4. Automatic calibration
5. Large, easy-to-read LCD provides exact readings without guessing or errors
6. ˆm/mil conversion switch
7. Includes hard carrying case and batteries
Standard Accessories:
1. Main Unit
2. Probe (F Type / NF Type)
The F probes measure the thickness of non-magnetic materials. The N probes measure the thickness of non-magnetic coatings on non-magnetic metals.
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
Other range 0~200um to 15000um
